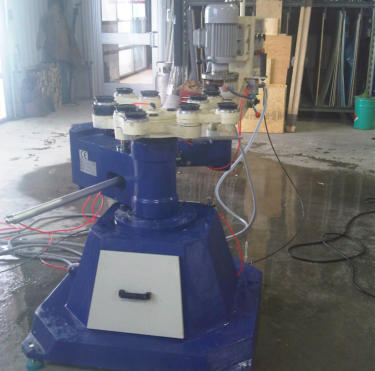

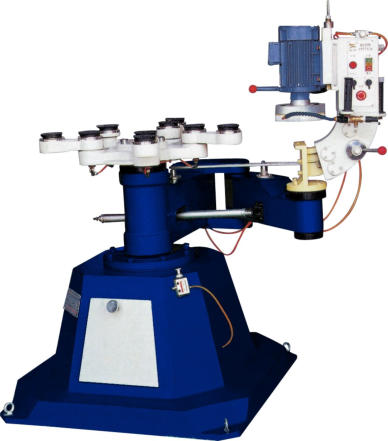

GSBM20 Shape Edging Machine

Description This machine is designed for the grinding and polishing of exterior edges of shaped glass. By changing the grinding wheel, different edge profiles (flat, pencil, OG, etc... are possible. The height of the spindle is easily adjusted with a motorized control. A pneumatic cylinder (included attachment) makes it possible to process circle shapes automatically. The turntable drive motor and worm gear are installed in the base of the housing.  The turntable speed is adjustable by a handwheel.
Technical Specifications GSBM20 Bevel Angle 5 - 20 degrees Glass Thickness 3-30 mm (1/8 to 1-3/16") Glass Diameter 100 - 2000mm (4 to 78-3/4") Total Weight 500 kg or 1100 lbs Total Power  * 2.8 KW Dimensions  ** 5' x 5' x 5"3" *  3-phase required -Voltage to be specified by customer
