Welcome to GlassPolishingMachines.com
GEM EDGE
Ho
HOme

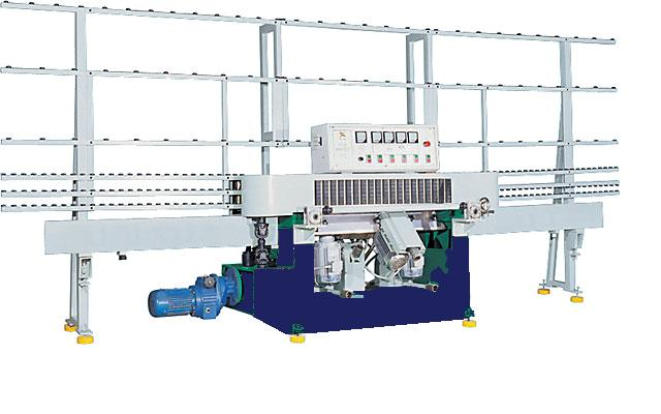

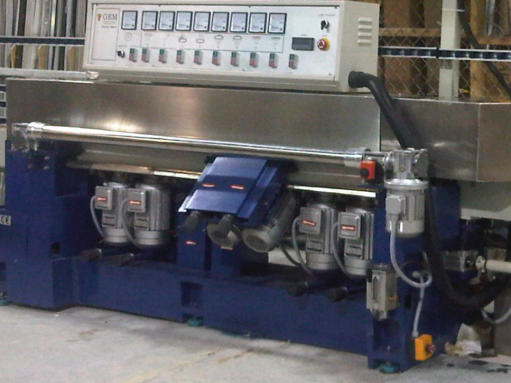

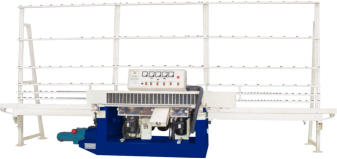

4 Spindle GEM121 Shown above. A c t ua l   m a c hi ne s   m a y   d i f f e r   s li g h t l y   f r o m   p i c t ur e
GEM    Light-Duty    Glass    Polishing    Machines    feature    simple    operation,    great performance   and   are   very   affordable!      Quick   changeover   from   any   thickness is   possible   (only   takes   a   few   seconds   with   no   wheel   change)!      Working   speed is   adjustable,   LED   readouts   for   conveyor   speed   and   glass   thickness.      Stainless Steel    tanks,    covers    and    working    section.        Spare    parts    package    included.      Comes with 1 year warranty.  Low maintenance and good performance.
1 Flat Diamond, 2 Arris Cut, 1 Flat Polish

GEM121 - 4 Spindle Glass Polishing Machine

GEM243 - 9 Spindle Glass Polishing Machine

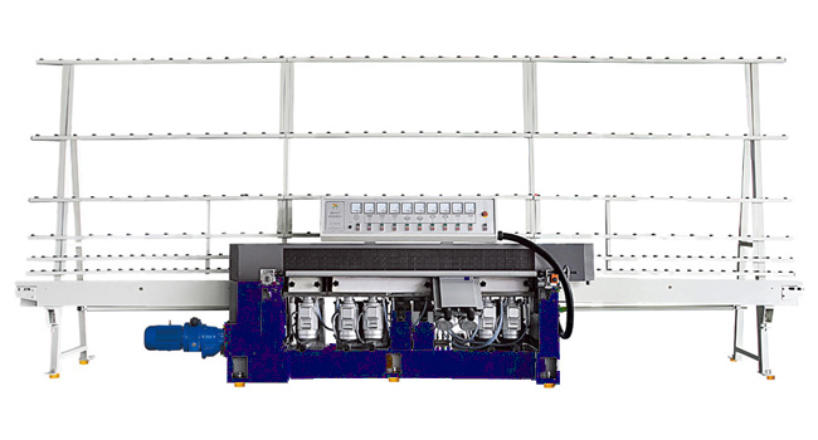

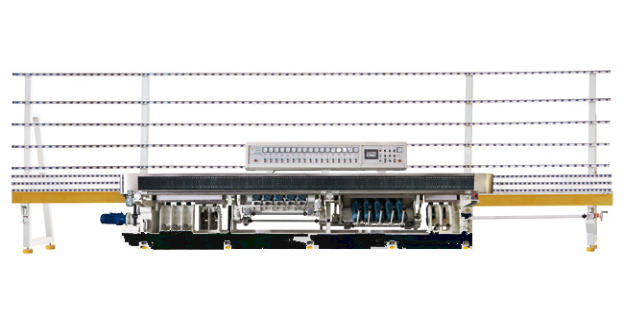

9 Spindle GEM243 Shown above. A c t ua l   m a c hi ne s   m a y   d i f f e r   s li g h t l y   f r o m   p i c t ur e
1 Flat Diamond, 2 Arris Cut, 1 Flat Resin 1 Flat Polish 1 Flat Cerium
Technical Specifications GEM242-8 Spindle GEM243 - 9 Spindle Min. Glass Size 60mm (2-1/2") 60mm (2-1/2") Glass Thickness 3-25 mm (1/8 to 1") 3-25 mm (1/8 to 1") Conveyor Speed 0.8 to 4 m/min          31 to 158"/min 0.8 to 4 m/min                                       31 to 158"/min Total Weight 2700 kg or 60000 lbs 2900 kg or 6400 lbs Total Power  * 18 KW 20 KW Dimensions  ** 21.5' x 3.25' x 8.5' 22.3' x 3.25' x 8.5' *  3-phase required -Voltage to be specified by customer **  Optional extended conveyors (add 39” to each end) for loading or taller available
1 Flat Diamond, 1 Flat Resin 2 Arris Cut, 2 Arris Polish 1 Flat Polish 1 Flat Cerium
2 Flat Diamond, 2 Arris Cut, 2 Arris Polish 1 Flat Resin 1 Flat Polish 1 Flat Cerium
Technical Specifications GEM121-4 Spindle GEM123-6 Spindle Min. Glass Size 60mm (2-1/2") 60mm (2-1/2") Glass Thickness 3-25 mm (1/8 to 1") 3-25 mm (1/8 to 1") Conveyor Speed 0.8 to 4 m/min          31 to 158"/min 0.8 to 4 m/min                                       31 to 158"/min Total Weight 1700 kg or 3740 lbs 1701 kg or 3740 lbs Total Power  * 11KW 13KW Dimensions  ** 17' x 3.2' x 6' 19' x 3.2' x 6' *  3-phase required -Voltage to be specified by customer **  Optional extended conveyors (add 39” to each end) for loading or taller available

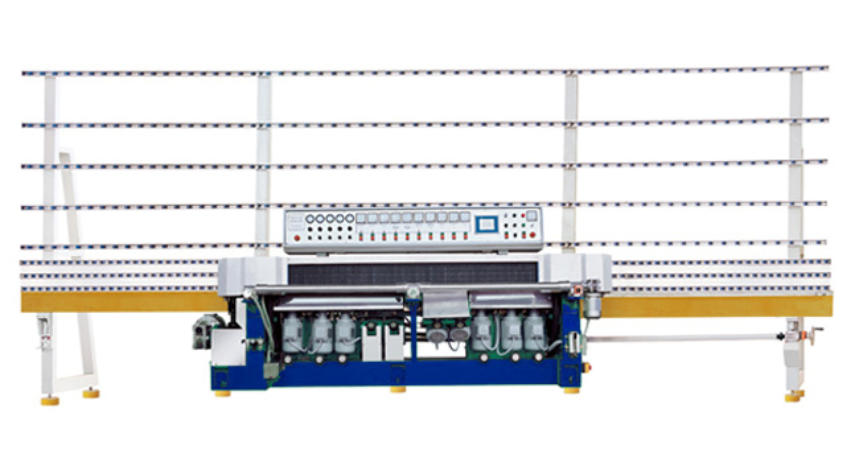

10 Spindle GEM343 Shown above. A c t ua l   m a c hi ne s   m a y   d i f f e r   s li g h t l y   f r o m   p i c t ur e
ABB HEAVY DUTY SPINDLES
HEAVY DUTY CONVEYOR DESIGN FOR THICK GLASS
2 Flat Diamond 1 Flat Resin 2 Arris Cut, 2 Arris Polish 2 Flat Polish 1 Flat Cerium
Technical Specifications GEM343-10 Spindle Min. Glass Size 80mm (3.15 ") Glass Thickness 3-25 mm (1/8 to 1") Conveyor Speed 0.8 to 4 m/min          31 to 158"/min Total Weight 3200 kg or 7055 lbs Total Power  * 20 KW Dimensions  ** 23' x 3.5' x 8.5' *  3-phase required -Voltage to be specified by customer **  Optional extended conveyors for loading or taller available

GEM343 - 10 Spindle Glass Polishing Machine

ALSO AVAILABLE IN CUSTOM CONFIGURATIONS EG. 17 SPINDLE - WITH MULTIPLE VARIABLE ANGLE BEAMS CONTACT US FOR A QUOTE
+1-416-342-7547 +1-647-669-5430 sales@atwoodsales.com  http://www.atwoodsales.com
ATWOOD SALES INC Glass industry Machines & Tooling
Mobile Glass Handling Solutions
CNC Glass Cutting Tables
Other, Affordable Glass Fabrication Machines
Quick Change Wheel System
Glass Storage, Dollies, Other
Welcome to GlassPolishingMachines.com
4 Spindle GEM121 Shown above. A c t ua l   m a c hi ne s   m a y   d i f f e r   s li g h t l y   f r o m   p i c t ur e
GEM     Light-Duty     Glass     Polishing     Machines feature    simple    operation,    great    performance and    are    very    affordable!        Quick    changeover from   any   thickness   is   possible   (only   takes   a   few seconds    with    no    wheel    change)!        Working speed   is   adjustable,   LED   readouts   for   conveyor speed    and    glass    thickness.        Stainless    Steel tanks,    covers    and working        section.          Spare                 parts package     included.       Comes   with   1   year warranty.              Low maintenance      and good performance.
1 Flat Diamond, 2 Arris Cut, 1 Flat Polish

GEM121

4 Spindle Glass Polishing Machine

GEM242/3

8/9 Spindle Glass Polishing Machine

9 Spindle GEM243 Shown above. A c t ua l   m a c hi ne s   m a y   d i f f e r   s li g h t l y   f r o m   p i c t ur e
1 Flat Diamond, 2 Arris Cut, 1 Flat Resin 1 Flat Polish 1 Flat Cerium
Technical Specifications GEM242-8 Spindle GEM243 - 9 Spindle Min. Glass Size 60mm (2-1/2") 60mm (2-1/2") Glass Thickness 3-25 mm (1/8 to 1") 3-25 mm (1/8 to 1") Conveyor Speed 0.8 to 4 m/min          31 to 158"/min 0.8 to 4 m/min                                       31 to 158"/min Total Weight 2700 kg or 60000 lbs 2900 kg or 6400 lbs Total Power  * 18 KW 20 KW Dimensions  ** 21.5' x 3.25' x 8.5' 22.3' x 3.25' x 8.5' *  3-phase required -Voltage to be specified by customer **  Optional extended conveyors (add 39” to each end) for loading or taller available
1 Flat Diamond, 1 Flat Resin 2 Arris Cut, 2 Arris Polish 1 Flat Polish 1 Flat Cerium
2 Flat Diamond, 2 Arris Cut, 2 Arris Polish 1 Flat Resin 1 Flat Polish 1 Flat Cerium
10 Spindle GEM343 Shown above. A c t ua l   m a c hi ne s   m a y   d i f f e r   s li g h t l y   f r o m   p i c t ur e
ABB HEAVY DUTY SPINDLES
HEAVY DUTY CONVEYOR DESIGN FOR THICK GLASS
2 Flat Diamond 1 Flat Resin 2 Arris Cut, 2 Arris Polish 2 Flat Polish 1 Flat Cerium
Technical Specifications GEM343-10 Spindle Min. Glass Size 80mm (3.15 ") Glass Thickness 3-25 mm (1/8 to 1") Conveyor Speed 0.8 to 4 m/min          31 to 158"/min Total Weight 3200 kg or 7055 lbs Total Power  * 20 KW Dimensions  ** 23' x 3.5' x 8.5' *  3-phase required -Voltage to be specified by customer **  Optional extended conveyors for loading or taller available

GEM343

10 Spindle Glass Polishing Machine

OTHER SPINDLE CONFIGURATIONS AVAILABLE UPON REQUEST EG. 17 SPINDLE - WITH MULTIPLE VARIABLE ANGLE BEAMS CONTACT US FOR A QUOTE
GEM EDGE Technical Specifications GEM121 - 4 Spindle Min. Glass Size 60mm (2-1/2") Glass Thickness 3-30 mm (1/8 to 1-3/16") Conveyor Speed 31 to 158" per min Total Weight 1700 kg or 3740 lbs Total Power  * 11 KW Dimensions  ** 17.5' x 3.2' x 6' *  3-phase required -Voltage to be specified by customer **  Optional extended conveyors (39" each end) for loading or taller racks available Available in Different Models with more spindles and wheel configurations

GEM123

6 Spindle Glass Polishing Machine

Technical Specifications GEM123 - 6 Spindle Min. Glass Size 60mm (2-1/2") Glass Thickness 3-30 mm (1/8 to 1-3/16") Conveyor Speed 31 to 158" per min Total Weight 2400 kg or 5300 lbs Total Power  * 13 KW Dimensions  ** 19' x 3.2' x 8' *  3-phase required -Voltage to be specified by customer **  Optional extended conveyors (39" each end) for loading or taller racks available Available in Different Models with more spindles and wheel configurations
