GEM EDGE
Ho
HOme

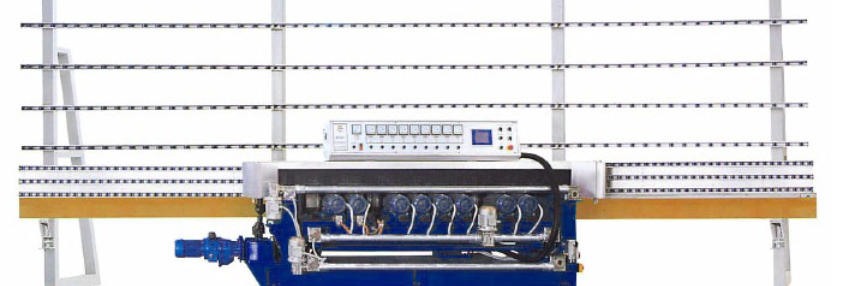

GBM2142 - 9 Spindle Glass Bevelling Machine

GEM   Glass   Bevelling   Machines   feature   simple   operation,   great   performance   and are   very   affordable!      Quick   changeover   from   any   thickness   and   bevel   size   can   be accomplished   in   seconds   with   Mistubishi   PLC   touch   screen   control!      Bevels   are clear    and    straight   with    miters    that    line    up    in    the    corners.       Working    speed    is adjustable,   LED   readouts   for   conveyor   speed,   glass   thickness   and   bottom   edge remainder.        High    quality    spindles    produce    sharp    clear    and    straight    bevels.      Stainless   Steel   tanks,   covers   and   working   section.      Spare   parts   package   included.     Comes with 1 year parts warranty.  Low maintenance and great performance.
-
A c t ua l   m a c hi ne   m a y   d if f e r   s li g h t l y   f r o m   p i c t ur e
GBM2142 Specifications Max. Bevel Size 35mm (1 - 3/8”) Bevel Angle 0 - 15 degrees Min. Glass Size 100 x 100 mm (4 x 4”) Glass Thickness 3mm - 19mm  (1/8 — 3/4”) Conveyor Speed 0.75m – 3.0m/min 30 - 118”/min Weight 3200Kg (7000 lb) Total Power* 21 KW Dimensions** 6.4m x 1.5m x 2.6m 20 x 5 x 8.5 ft. *   Voltage to be specified by customer ** Optional extended conveyors for loading

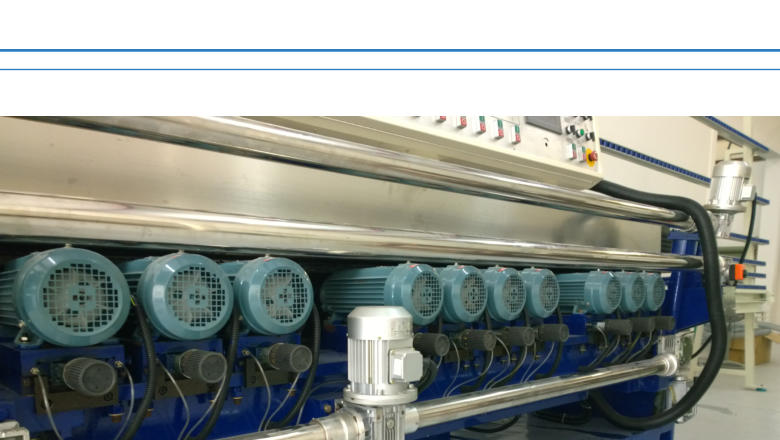

GBM3143 - 11 Spindle Glass Bevelling Machine

-
A c t ua l   m a c hi ne   m a y   d if f e r   s li g h t l y   f r o m   p i c t ur e
GBM3143 Specifications Max. Bevel Size 38mm (or 50mm)  1 - 1/2” (or 2”) Bevel Angle 0  – 35 degrees Min. Glass Size 100 x 100 mm (4 x 4”) Glass Thickness 3mm - 19mm  (1/8 ” – 3/4”) Conveyor Speed 0.75m – 3.9m/min (29”  – 153” / min) Weight 5000Kg (11,000lbs) Total Power* 25.7 KW Dimensions** 7.6m x 1.5m x 2.6m (24.9’ x 5’ x 8.2’) *   Voltage to be specified by customer ** Optional extended conveyors for loading
+1-416-342-7547 +1-647-669-5430 sales@atwoodsales.com  http://www.atwoodsales.com
ATWOOD SALES INC Glass industry Machines & Tooling
Mobile Glass Handling Solutions
CNC Glass Cutting Tables
Other, Affordable Glass Fabrication Machines
Quick Change Wheel System
Glass Storage, Dollies, Other
Welcome to GlassPolishingMachines.com
Ho
HOme

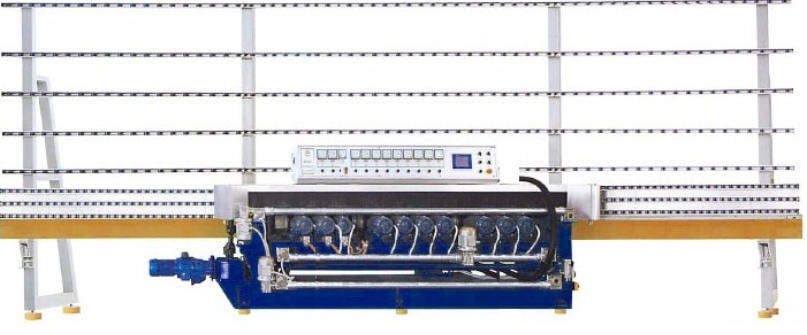

GBM2142

9 Spindle Glass Bevelling Machine

GEM   Glass   Bevelling   Machines   feature   simple   operation, great     performance     and     are     very     affordable!          Quick changeover    from    any    thickness    and    bevel    size    can    be accomplished   in   seconds   with   Mistubishi   PLC   touch   screen control!      Bevels   are   clear   and   straight   with   miters   that   line up    in    the    corners.        Working    speed    is adjustable,    LED    readouts    for    conveyor speed,   glass   thickness   and   bottom   edge remainder.            High      quality      spindles produce   sharp   clear   and   straight   bevels.     Stainless   Steel   tanks,   covers   and   working section.      Spare   parts   package   included.     Comes   with   1   year   parts   warranty.      Low maintenance and great performance.
-
A c t ua l   m a c hi ne   m a y   d if f e r   s li g h t l y   f r o m   p i c t ur e
GBM2142 Specifications Max. Bevel Size 35mm (1 - 3/8”) Bevel Angle 0 - 15 degrees Min. Glass Size 100 x 100 mm (4 x 4”) Glass Thickness 3mm - 19mm  (1/8 — 3/4”) Conveyor Speed 0.75m – 3.0m/min 30 - 118”/min Weight 3200Kg (7000 lb) Total Power* 21 KW Dimensions** 6.4m x 1.5m x 2.6m 20 x 5 x 8.5 ft. *   Voltage to be specified by customer ** Optional extended conveyors for loading

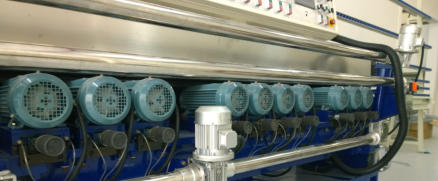

GBM3143

11 Spindle Glass Bevelling Machine

-
A c t ua l   m a c hi ne   m a y   d if f e r   s li g h t l y   f r o m   p i c t ur e
GBM3143 Specifications Max. Bevel Size 38mm (or 50mm)  1 - 1/2” (or 2”) Bevel Angle 0  – 35 degrees Min. Glass Size 100 x 100 mm (4 x 4”) Glass Thickness 3mm - 19mm  (1/8 ” – 3/4”) Conveyor Speed 0.75m – 3.9m/min (29”  – 153” / min) Weight 5000Kg (11,000lbs) Total Power* 25.7 KW Dimensions** 7.6m x 1.5m x 2.6m (24.9’ x 5’ x 8.2’) *   Voltage to be specified by customer ** Optional extended conveyors for loading
