GEM   Light-Duty   Glass   Mitering   /   Polishing   Machines   feature   simple   operation,   great   performance   and are   very   affordable!      With   the   ability   to   Miter   up   to   45   degrees   or   produce   a   flat   polished   edge   with seams,   this   machine   is   ideal   for   the   small   fabricator   who   wants   to   edge   shower   doors   or   display   fixtures.     Quick   changeover   from   any   thickness   is   possible   (only   takes   a   few   seconds with   the   PLC   touch   scree with no   wheel   change)!      Working   speed   is   adjustable,   LED   readouts   for   conveyor   speed   and   glass   thickness.     Stainless   Steel   tanks,   covers   and   working   section.      Spare   parts   package   included.      Comes   with   1   year warranty.  Low maintenance and good performance.

GEM945P - 9 Spindle Glass MItering / Polishing Machine

Cradle Section 2 Flat Diamond, 1 Flat Resin 1 Flat Polish 1 Flat Cerium
+1-416-342-7547 +1-647-669-5430 sales@atwoodsales.com  http://www.atwoodsales.com
ATWOOD SALES INC Glass industry Machines & Tooling
Mobile Glass Handling Solutions
CNC Glass Cutting Tables
More Affordable Glass Fabrication Machines
Quick Change Wheel System
Glass Storage, Dollies, Other
GEM EDGE
Welcome to GlassPolishingMachines.com
9 Spindle GEM945 Glass Bevelling Machine
FLAT POLISH WITH SEAMS
OR

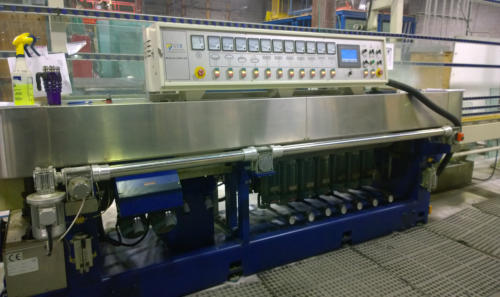

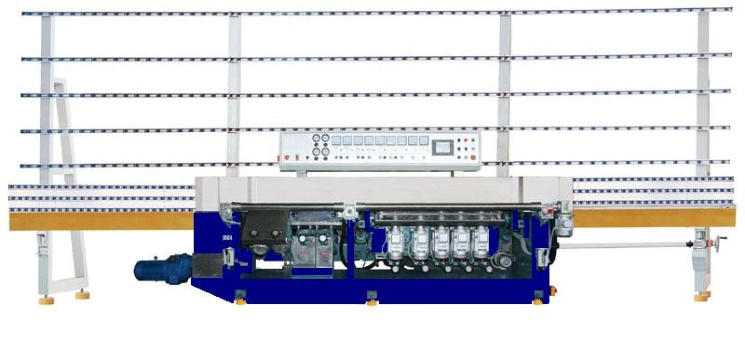

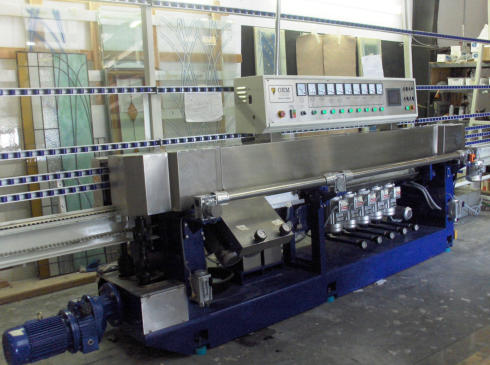

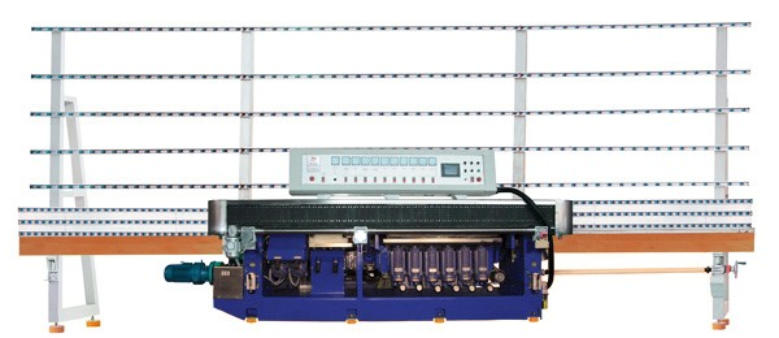

9 Spindle GEM945P Shown above. A c t ua l   m a c hi ne s   m a y   d i f f e r   s li g h t l y   f r o m   p i c t ur e
Arris/Seam Section 1 Rear Arris Resin 1 Rear Arris Polish 1 Front Arris Resin 1 Front Arris Polish
Technical Specifications GEM945P-9 Spindle Min. Glass Size 80mm (3.15 ") Glass Thickness 3-25 mm (1/8 to 1") Conveyor Speed 0.8 to 4 m/min          31 to 158"/min Variable Angle 0 to 45 Degrees Total Weight 4000 kg or 8820 lbs Total Power  * 22 KW Dimensions  ** 22.65' x 3.5' x 8.5' *  3-phase required -Voltage to be specified by customer **  Optional extended conveyors for loading or taller available
A c t ua l   m a c hi ne s   m a y   d i f f e r   s li g h t l y   f r o m   p i c t ur e
GEM1045P - Miter/Polish section [2 Diamond, 2 Resin, 1 Polish, 1 Cerium] +2 Arris Cut + 2 Arris Polish
GEM1145P - Miter/Polish section [2 Diamond, 2 Resin, 1 Polish, 2 Cerium] +2 Arris Cut + 2 Arris Polish

GEM1045P - 10 Spindle Glass MItering / Polishing Machine

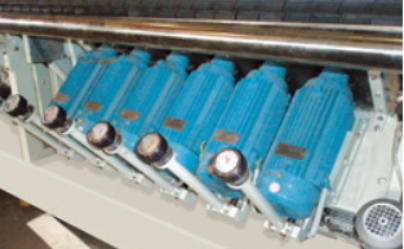

ABB HEAVY DUTY SPINDLES

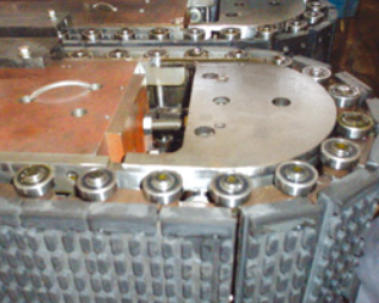

HEAVY DUTY CONVEYOR DESIGN FOR THICK GLASS
FLAT POLISH WITH SEAMS
OR
Technical Specifications GEM1045P-10 Spindle GEM1145P - 11 Spindle Min. Glass Size 80mm (3.15 ") 80mm (3.15 ") Glass Thickness 3-25 mm (1/8 to 1") 3-25 mm (1/8 to 1") Conveyor Speed 0.8 to 4 m/min         31  to 158"/min 0.8 to 4 m/min                                       31 to 158"/min Variable Angle 0 to 45 Degrees 0 to 45 Degrees Total Weight 5000 kg or 11,025 lbs 5300 kg or 11,685 lbs Total Power  * 25 KW 27.5 KW Dimensions  ** 23.6' x 4' x 8.2' 24.6' x 4' x 8.2' *  3-phase required -Voltage to be specified by customer **  Optional extended conveyors (39" each end) for loading or taller racks available
ALSO AVAILABLE IN CUSTOM CONFIGURATIONS EG. 17 SPINDLE - WITH MULTIPLE VARIABLE ANGLE BEAMS CONTACT US FOR A QUOTE

FOR THE GLASS FABRICATOR OF LARGE COMMERCIAL GLASS OR

HEAVY PRODUCTION DEMANDS.

CNC Shape Glass Cutting - Stand Alone with Air floatation
Ho
HOme
GEM     Light-Duty     Glass     Mitering     /     Polishing Machines      feature      simple      operation,      great performance   and   are   very   affordable!      With   the ability   to   Miter   up   to   45   degrees   or   produce   a   flat polished   edge   with   seams,   this   machine   is   ideal for    the    small    fabricator    who    wants    to    edge shower     doors     or     display     fixtures.          Quick changeover   from   any   thickness   is   possible   (only takes   a   few   seconds   with   the   PLC   touch   scree with    no    wheel    change)!        Working    speed    is adjustable,    LED    readouts    for    conveyor    speed and    glass    thickness.        Stainless    Steel    tanks, covers     and     working     section.          Spare     parts package   included.      Comes   with   1   year   warranty.     Low maintenance and good performance.

GEM945P

9 Spindle Glass MItering / Polishing Machine

Cradle Section 2 Flat Diamond, 1 Flat Resin 1 Flat Polish 1 Flat Cerium
+1-416-342-7547 +1-647-669-5430 sales@atwoodsales.com  http://www.atwoodsales.com
ATWOOD SALES INC Glass industry Machines & Tooling
Mobile Glass Handling Solutions
CNC Glass Cutting Tables
Other, Affordable Glass Fabrication Machines
Quick Change Wheel System
Glass Storage, Dollies, Other
Welcome to GlassPolishingMachines.com
9 Spindle GEM945 Glass Bevelling Machine
FLAT POLISH WITH SEAMS
OR
9 Spindle GEM945P Shown above. A c t ua l   m a c hi ne s   m a y   d i f f e r   s li g h t l y   f r o m   p i c t ur e
Arris/Seam Section 1 Rear Arris Resin 1 Rear Arris Polish 1 Front Arris Resin 1 Front Arris Polish
Technical Specifications GEM945P-9 Spindle Min. Glass Size 80mm (3.15 ") Glass Thickness 3-25 mm (1/8 to 1") Conveyor Speed 0.8 to 4 m/min          31 to 158"/min Variable Angle 0 to 45 Degrees Total Weight 4000 kg or 8820 lbs Total Power  * 22 KW Dimensions  ** 22.65' x 3.5' x 8.5' *  3-phase required -Voltage to be specified by customer **  Optional extended conveyors for loading or taller available
GEM1045P Miter/Polish section [2 Diamond, 2 Resin, 1 Polish, 1 Cerium] +2 Arris Cut + 2 Arris Polish

GEM10/1145P

10/11 Spindle Glass MItering / Polishing Machine

Technical Specifications GEM1045P-10 Spindle GEM1145P - 11 Spindle Min. Glass Size 80mm (3.15 ") 80mm (3.15 ") Glass Thickness 3-25 mm (1/8 to 1") 3-25 mm (1/8 to 1") Conveyor Speed 0.8 to 4 m/min         31  to 158"/min 0.8 to 4 m/min                                       31 to 158"/min Variable Angle 0 to 45 Degrees 0 to 45 Degrees Total Weight 5000 kg or 11,025 lbs 5300 kg or 11,685 lbs Total Power  * 25 KW 27.5 KW Dimensions  ** 23.6' x 4' x 8.2' 24.6' x 4' x 8.2' *  3-phase required -Voltage to be specified by customer **  Optional extended conveyors (39" each end) for loading or taller racks available GEM EDGE
OTHER SPINDLE CONFIGURATIONS AVAILABLE UPON REQUEST EG. 17 SPINDLE - WITH MULTIPLE VARIABLE ANGLE BEAMS CONTACT US FOR A QUOTE
FLAT POLISH WITH SEAMS
OR

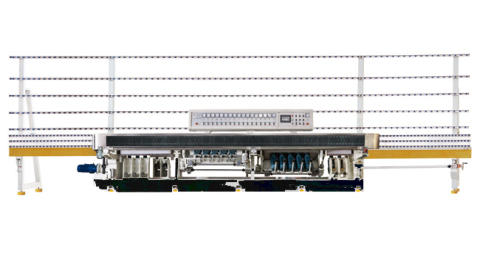

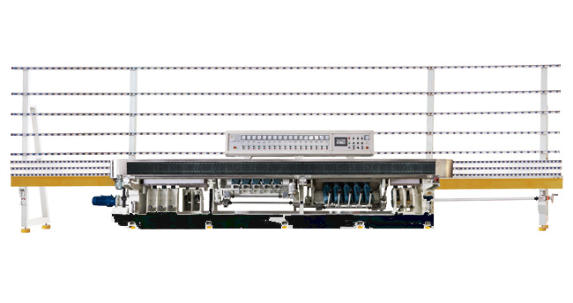

10 Spindle GEM1045P Shown above. A c t ua l   m a c hi ne s   m a y   d i f f e r   s li g h t l y   f r o m   p i c t ur e
GEM1145P Miter/Polish section [2 Diamond, 2 Resin, 1 Polish, 2 Cerium] +2 Arris Cut + 2 Arris Polish
ABB HEAVY DUTY SPINDLES
HEAVY DUTY CONVEYOR DESIGN FOR THICK GLASS

FOR THE GLASS FABRICATOR OF LARGE

COMMERCIAL GLASS OR HEAVY

PRODUCTION DEMANDS.
